PAV 2-Way 1/2" to 2" Motorized Valve- 3 Wire - IP54-(Not Waterproof -Indoor use or in an Enclosure) - For Clean Water
R1 925.50
MOTORIZED VALVE
Price incl. Standard Rate (15%) R251.15
Choose Your: VALVE SIZE
Please choose
Choose your: ACTUATOR VOLTAGE
Please choose
Choose your : SWITCHING RELAY
Please choose
In stock
1
Save this product for later
PAV 2-Way 1/2" to 2" Motorized Valve- 3 Wire - IP54-(Not Waterproof -Indoor use or in an Enclosure) - For Clean Water

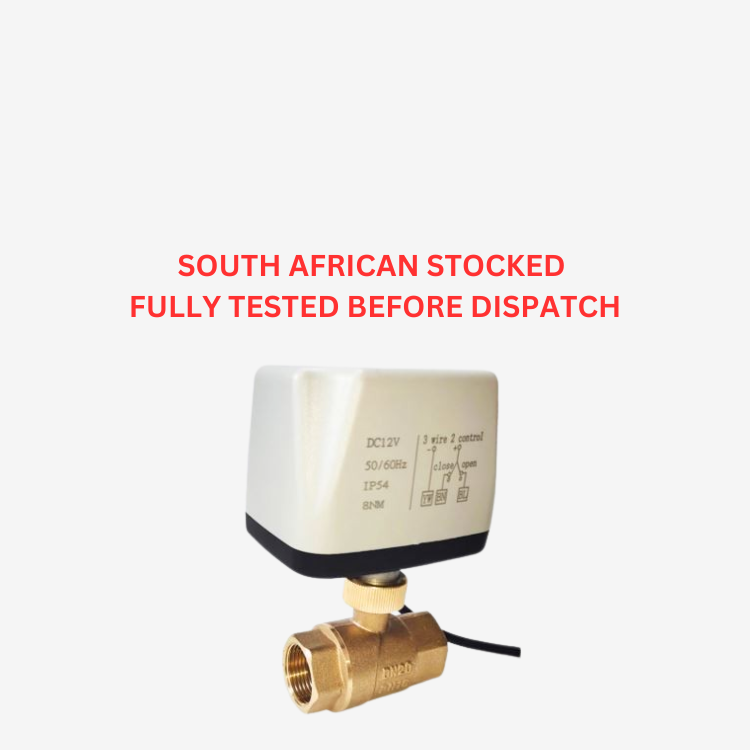

PAV 2-Way Detend Brass- 3 Wire Electric Ball Valve Series - IP54-(Not Waterproof -Indoor use or in an Enclosure)
Recommended usage for clean drinking water (potable water). If you use this valve for grey water, rain water, dam water and borehole water, make sure you have filtration of at least 20 microns before valve inlets.
Other non-corrosive CLEAN liquids with a viscosity of less 20 centistokes can also be used.

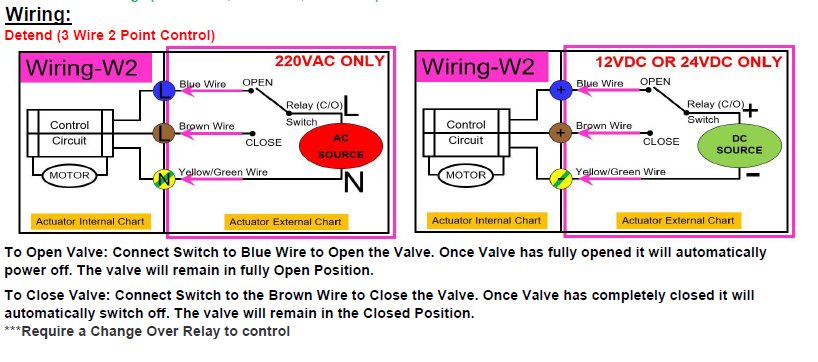

This electric ball valve is a type of valve that uses an electric motor to control the opening and closing of the valve. The motor rotates the ball inside the valve, which controls the flow of fluid. This is NOT a Failsafe actuator. You control movement with 3 wires. One wire is common and you select the second wire to connect to power depending on the movement direction you need(Open or Closed).Usually the wire Green/Yellow is permanently connected (N-for 220VAC and 0Volt(Gnd) for DC). The other Polarity (L-220VAC or +12/24VDC) For the Movement Direction you then choose either Blue to OPEN or Brown to CLOSE. If you have a SONOFF device with only a Normal Open contact, you will need to select and buy the additional RELAY kit to connect in between the SONOFF and Valve Actuator for Direction change.(Blue to Brown) (When the power fails the Valve will stay where it is , unless you have wired a backup power source. Lately you get SONOFF devices with Changeover Relays built in with COM+NOpen+NClose contacts to operate this valve. (For ADVANCED flow control you can use two relays to inch the valve in either direction-ONLY FOR THOSE WHO KNOW HOW!!)
Product Specifications
PLEASE MAKE SURE YOU CHOOSE THE CORRECT SIZE, VOLTAGE AND PRESSURE REQUIRED.
If you require more quantities than the stock availability shown, please contact us on sales@valvix.co.za
These valves are tested before dispatch to ensure quality and reliability.

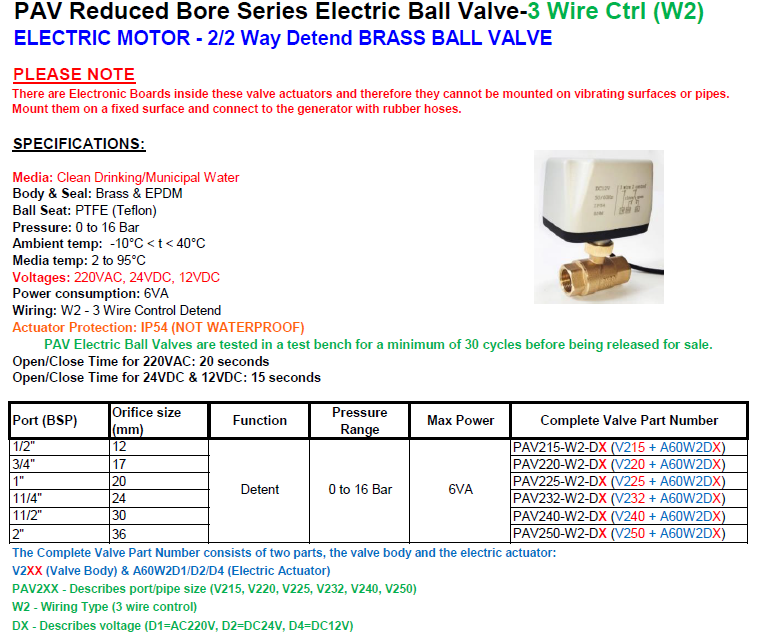

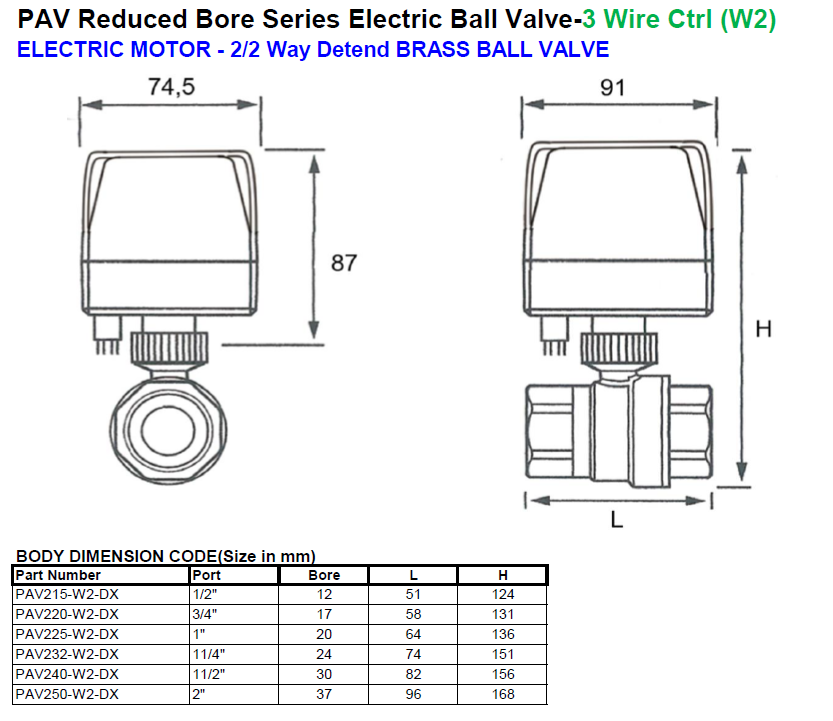

Data sheet and wiring diagram available on request.
Please note: IP54 is not waterproof- to be installed indoors.
If you can't find what you are looking for, please visit our INDUSTRIAL WEBSITE
